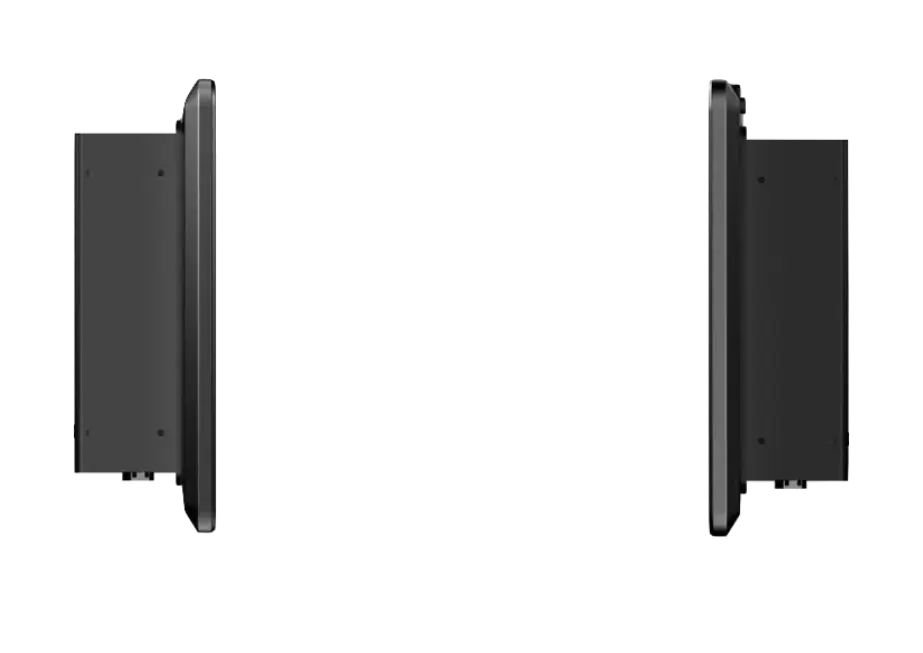

Experience seamless integration and cutting-edge performance with the Rugstorm D101WN. This sleek, 10.1-inch fanless industrial panel PC boasts the latest touchscreen technology, delivering exceptional responsiveness and clarity. Its ultra-slim design allows for effortless mounting in any environment, making it the perfect solution for modern industrial applications.
The D101WN delivers reliable, real-time Windows performance for critical industrial automation tasks, powered by the efficient Intel® Processor N100. Stay connected with robust, high-speed connectivity options, including integrated Wi-Fi 6 and 4G LTE, ensuring seamless data flow in demanding environments.

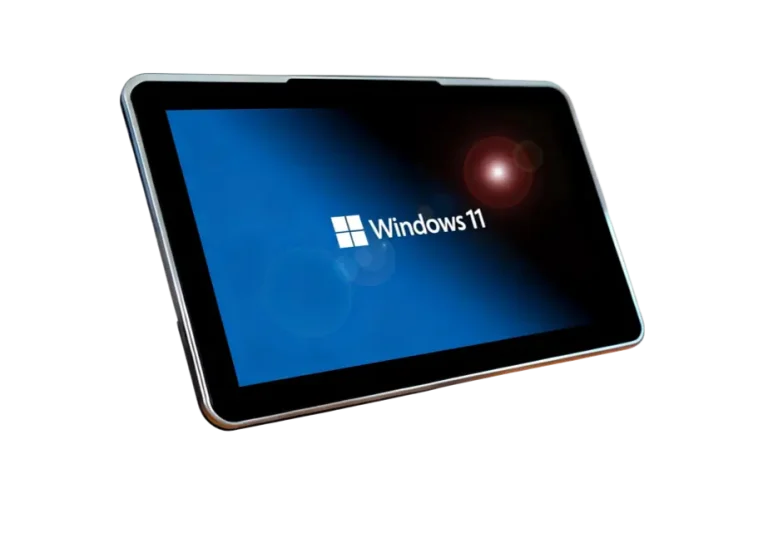

The D101WN delivers a truly responsive and modern user experience with its high-performance capacitive multi-touch screen. Featuring 5-point simultaneous touch recognition, it enables effortless navigation and intuitive gesture control, including swiping, zooming, and pinching, for streamlined operation.

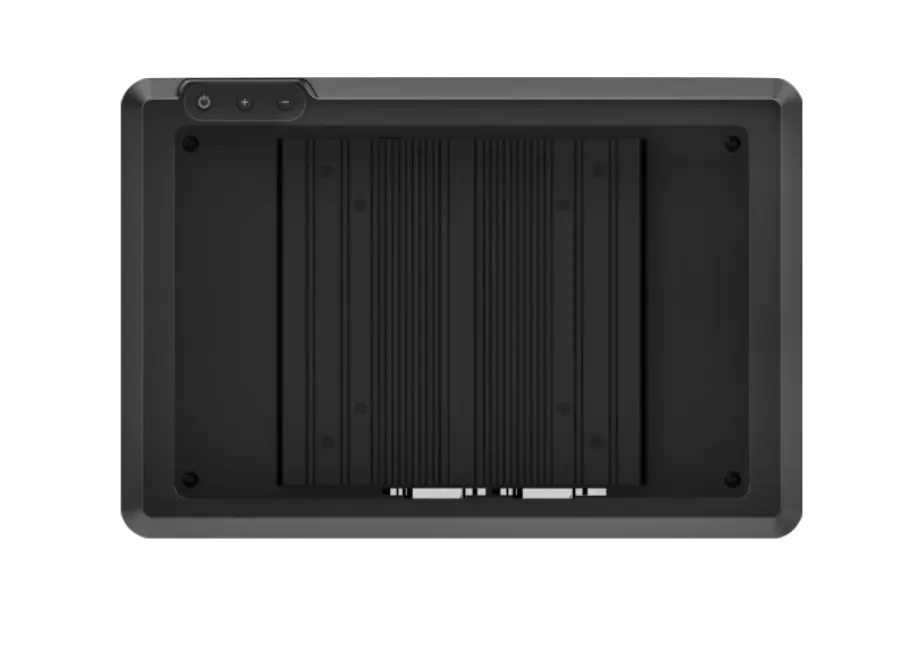

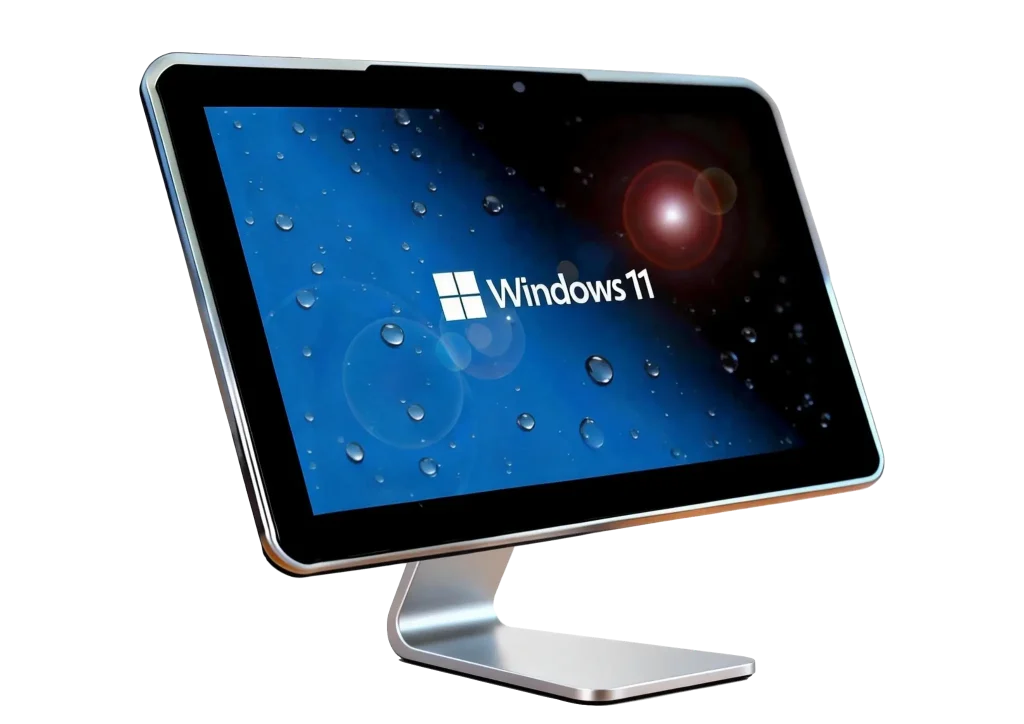

Simplify your installation process with the D101WN's user-friendly design. The integrated desk arm revealing a 75mm VESA mount for effortless compatibility with universal wall brackets. Mount your device in either landscape or portrait mode, ensuring optimal viewing and functionality.
| Specifications – D101WN | ||
| System | Operation System | Windows® 10 LTSC / Windows® 11 (Optional) |
| Processor | Intel® Processor N100 | |
| Frequency | 3.40 GHz Max | |
| Memory | 4GB DDR4, 16GB (optional) | |
| Storage | 1 x SATA 3.0, 1 x M.2(2280) self-adaption (SATA 3.0 / NVME PCIE 3.0 1X) |
|
| Wireless Connectivity | Wi-Fi (WLAN) | Wi-Fi 6 (Optional) |
| Cellular (WWAN) | 4G LTE CAT4 (Optional) | |

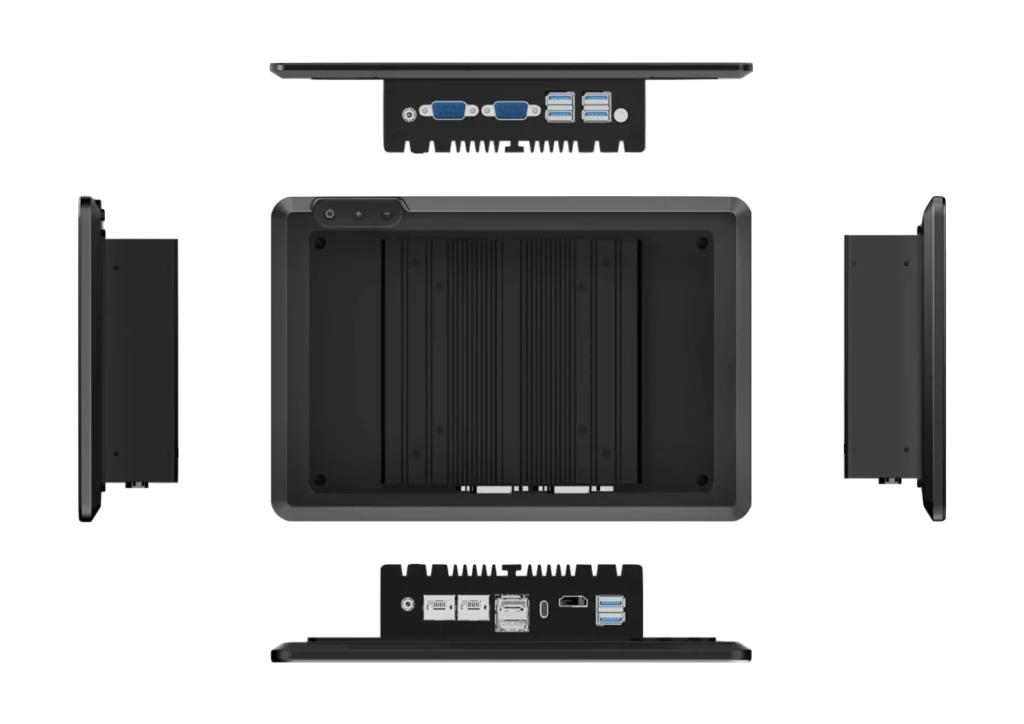

| Interface | Key | 1 x Power, 2 x Screen Brightness +/- |

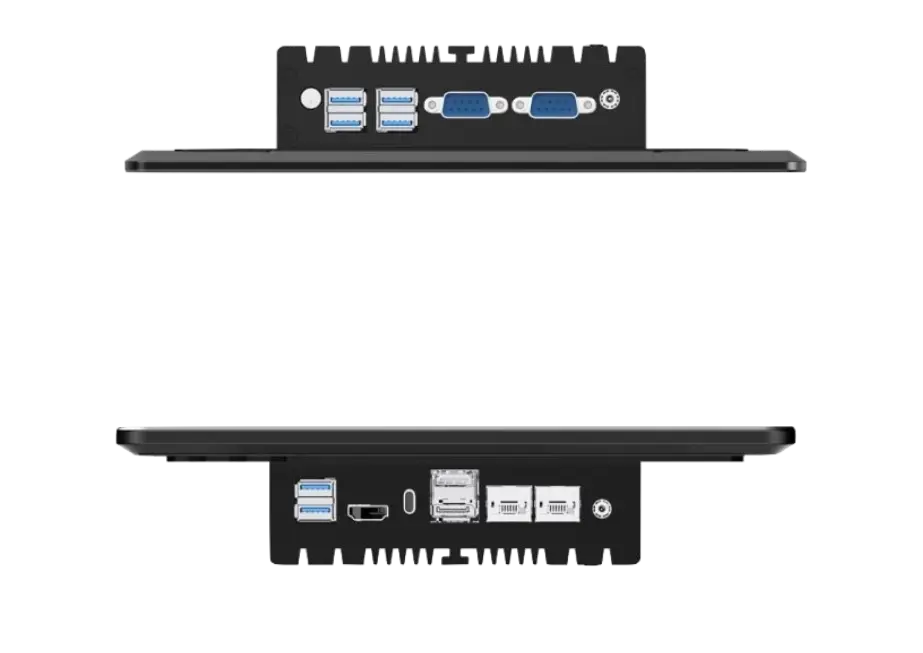

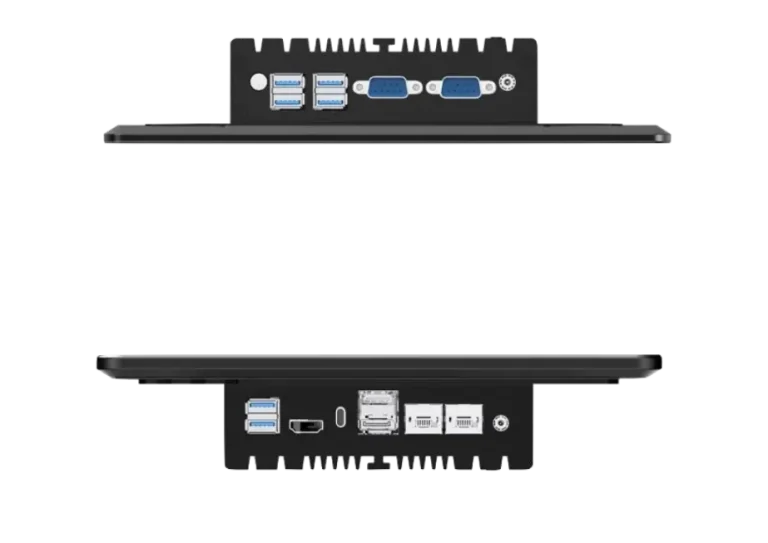

| I/O Port (Top Side) | 4 x USB3.0 Type-A, 2 x RS232, 1 x Audio | |
| I/O Port (Bottom Side) | 1 x 5.5mm DC in, 2 x RJ45 LAN, 1 x DP + HDMI 1 x HDMI Type-A, 1 x USB Type-C, 2 x USB2.0 Type-A |
|
| Dimension & Weight | Dimensions | 252mm L x 176mm W x 49.5mm D |
| Net Weight | 1.1kg | |
| Gross Weight | 1.4kg | |
| Power | Input Voltage | 12V |
| Touch Screen | Size | 10.1-inch |
| Resolution | 1280 x 800 | |
| Viewing Angle | 89°, vertical/horizontal | |
| Active Area | 217.98 x 136.6mm | |
| Brightness | 300 nits | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 | |
| Touchscreen Type | 5 point capacitive touch | |
| Environment | Operating Temperature | -10℃~55℃ |
| Storage Temperature | -20℃~60℃ | |
| Operating Humidity | 0%~95% (Non Condensing) | |
| Front Panel Protection | IP54 | |
| Compliance | Certification | CE / VCCI / JATE / CCC |
| Order Information | ||
| D101WS001 | 10.1-inch Panel PC, Windows® 10 LTSC, Intel® N100 | |
| D156WS001 | 15.6-inch Panel PC, Windows® 10 LTSC, Intel® N100 | |
| PXDCAB004 | 1.5m Power Cord (Japan) | |
| PXDCAB005 | 1.5m Power Cord (China) | |
| PXDCAB008 | 1.5m Power Cord (European Union) | |
| PXDAPD001 | AC Adapter, 100-240V ~ 1.5A 50-60Hz, 65W, 19V/3.42A, PSE/CCC | |
| XXDARM001 | Desk Arm, Support VESA 75 x 75mm and RAM Mount | |
| PXDCAB002 | 2m HDMI Cable | |
| PXDCAB010 | 3.5m HDMI Cable | |
| FXDMOD001 | 4G WANN Module, Mini PCIe | |
