Rugstorm D101A 配备10.1英寸超薄机身，支持多样化安装方式，可无缝融入各类工业环境。搭载先进多点触控技术，并可选配4G/5G/Wi-Fi等多模联网功能，保障数据实时传输与远程管理，确保操作流畅高效，助力您轻松优化工作流程。
D101A 配备丰富 I/O 接口（USB-C、USB-A 2.0 & 3.0、RS232/485、HDMI、千兆网口）与多种无线连接选项（Wi-Fi/5G/4G），保障设备高效作业，快速融入各类工业系统，满足动态网络需求。
D101A 搭载高性能电容式多点触控屏，提供灵敏的交互体验。支持五点同时触控识别，可轻松实现点控、滑动、缩放、双指开合等动作，显著提升操作效率，简化工作流程。

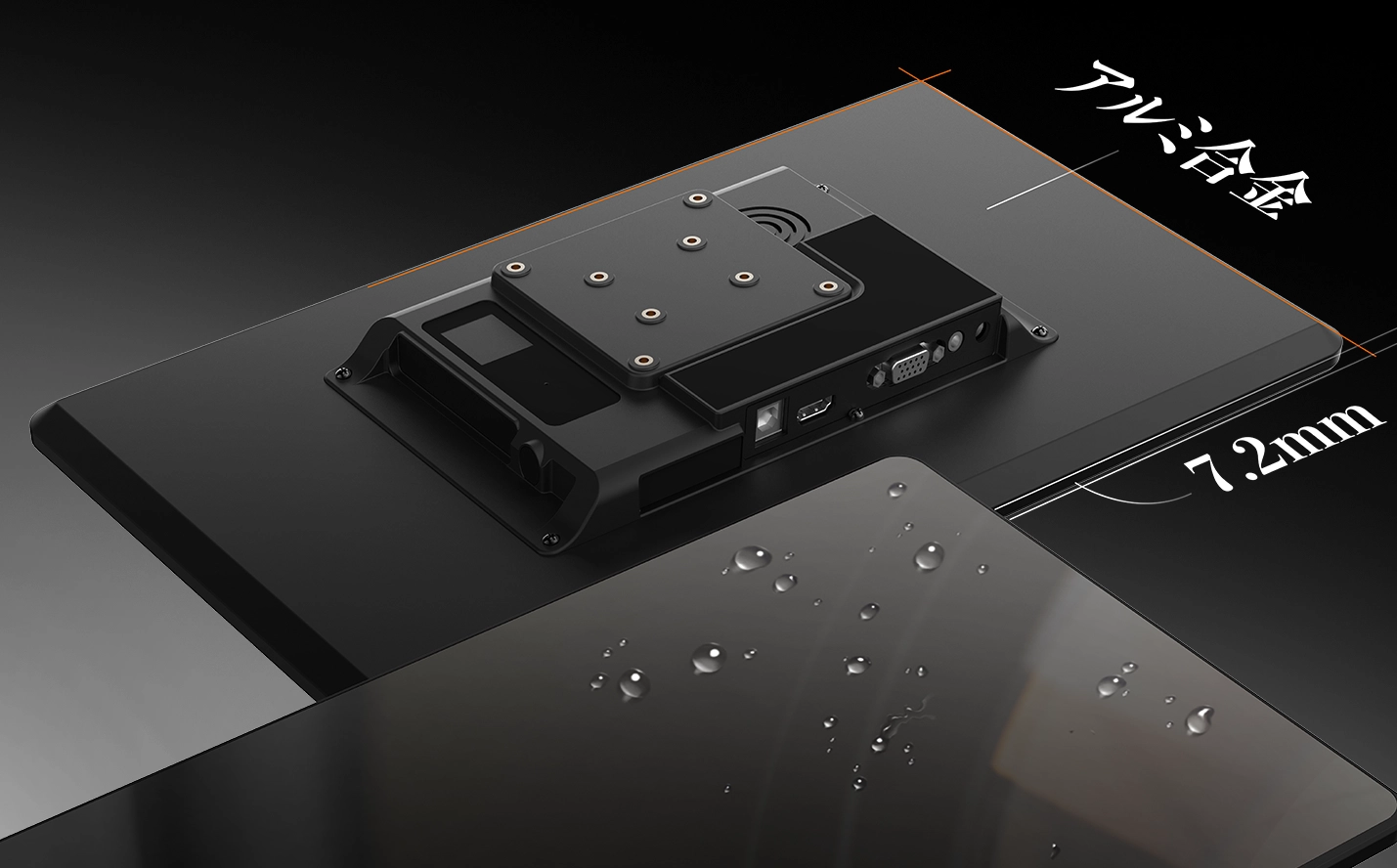

D101A 采用人性化设计，大幅简化安装流程。其配件配备75mm VESA标准接口，可轻松兼容通用壁挂支架，支持横屏/竖屏自由切换，确保最佳显示效果与功能适配。
| Specifications – D101A | ||
| System | Operation System | Android™ 12 |
| Processor | RK3568, Quad-core | |
| Frequency | 2.0 GHz (Max) | |
| Memory | 4GB DDR4, 8GB (optional) | |
| Storage | 32GB, 64GB (optional) | |
| Wireless Connectivity | Wi-Fi (WLAN) | Wi-Fi 2.4GHz (Optional) |
| Cellular (WWAN) | 4G LTE CAT4 / 5G NR SA (Optional) | |
| Interface | Key | 1 x Power, 2 x Screen Brightness +/- |
| I/O Port (Top Side) | 1 x USB2.0 Type-C, 1 x USB2.0 Type-A, 1 x RS232/RS485 | |

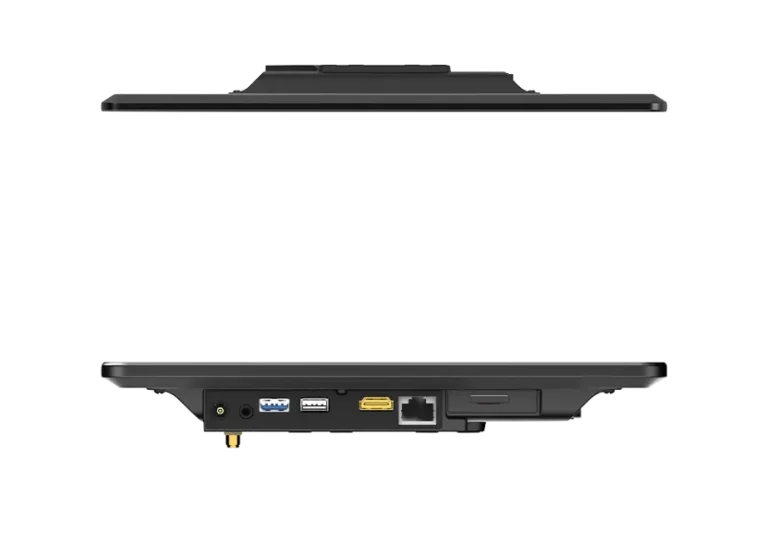

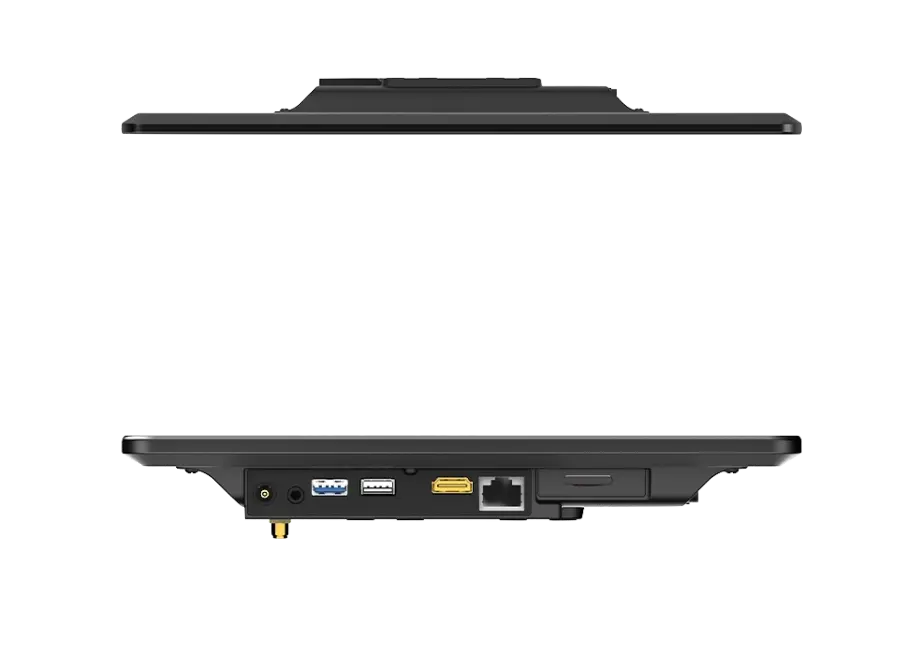

| I/O Port (Bottom Side) | 1 x Φ5.5mm DC in, 1 x HDMI Type-A, 1 x USB 3.0 Type-A 1x USB 2.0 Type-A, 1 x RJ45 LAN, 1 x 3.5mm Audio output |
|
| Dimension & Weight | Dimensions | 252mm L x 170.6mm W x 31.5mm D |
| Net Weight | 0.88kg | |
| Gross Weight | 1.2kg | |
| Power | Input Voltage | 12V, 2A |
| Touch Screen | Size | 10.1-inch |
| Resolution | 1280 x 800 | |
| Viewing Angle | 89°, vertical/horizontal | |
| Active Area | 217.98mm x 136.6mm | |
| Brightness | 300 nits | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 | |
| Touchscreen Type | 5 point capacitive touch | |
| Environment | Operating Temperature | -10℃~55℃ |
| Storage Temperature | -20℃~60℃ | |
| Operating Humidity | 0%~95% (Non Condensing) | |
| Front Panel Protection | IP54 | |
| Compliance | Certification | CE / VCCI / JATE / CCC |
| Order Information | ||
| Part Number | Description | |
| D101AS001 | 10.1-inch Panel PC, Android™ 12 | |
| D156AS001 | 15.6-inch Panel PC, Android™ 12 | |
| PXDCAB001 | AC Adapter, 100~240V, 24W, 12V/2A, PSE/CCC | |
| PXDCAB009 | AC Adapter, 100~240V, 24W, 12V/2A, CE | |
| XXDARM001 | Desk Arm, Support VESA 75 x 75mm and RAM Mount | |
| PXDCAB007 | 2m HDMI Cable | |
| PXDCAB002 | 3.5m HDMI Cable | |
| FXDMOD001 | 4G WANN Module, Mini PCIe | |
