D156

15.6″ Muti-touch Industrial Panel Display

Rugstorm D156 is designed to deliver a clear, and immersive viewing experience for a variety of applications. It is an excellent choice for those seeking a high-quality, reliable, and visually appealing Industrial display. Its combination of performance, durability, and sleek design makes it a valuable addition to any workspace.

  • Screen Size: 15.6-inch LCD
  • Resolution: 1920 x 1080
  • Brightness: 350 nits
  • Viewing Angle: 85° vertical/horizontal
  • Backlight Life: 20,000 hrs
  • Others: Aluminium-alloy frame, slim design



Specifications – D156
Touch Screen Size 15.6-inch
Resolution 1920 x 1080
Viewing Angle 85°, vertical/horizontal
Active Area 344.16mm x 193.59mm
Brightness 350 nits
Display Color 16.7M
Contrast Ratio 1200:1
Response Time 30 ms(Typ)
Backlight Life 20,000 hrs(Min)
Touchscreen Type Multi-touch capacitive touch
Surface Hardness 6H
Environment Operating Temperature -10℃~55℃
Storage Temperature -20℃~60℃
Operating Humidity 0%~95% (Non Condensing)
Front Panel Protection IP54

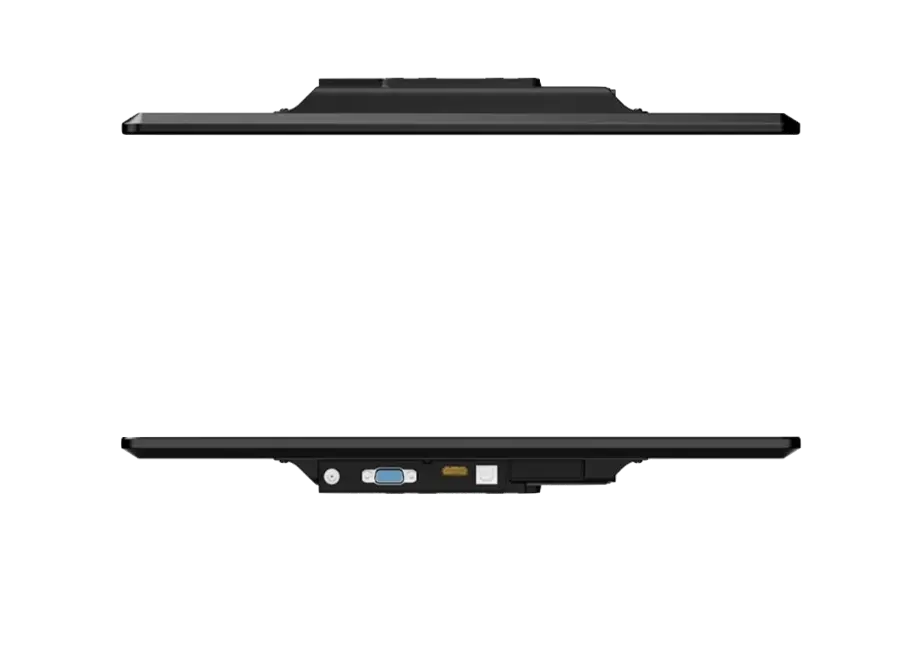

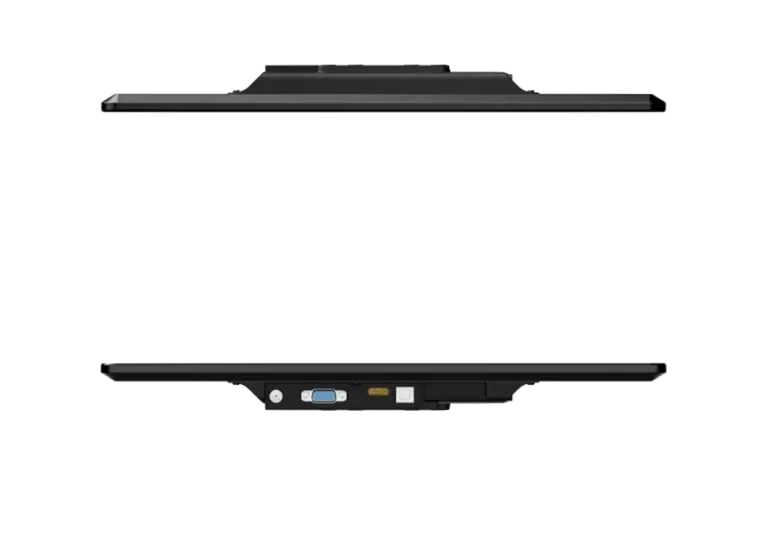

Interface DC JACK 12V DC in
HDMI Type-A supprt Brightness Control
USB-B Type-B for Touch Panel
DB9 RS485
Power Input Voltage 12V, 2A
Compliance Certification CE / VCCI / CCC
Packing Box Dimension 475mm L x 295mm W x 96mm D
Net Weight 1.66kg
Gross Weight 2.1kg, with box and adapter
Packing List 1 x USB (Type-A to Type-B) Cable, 2m

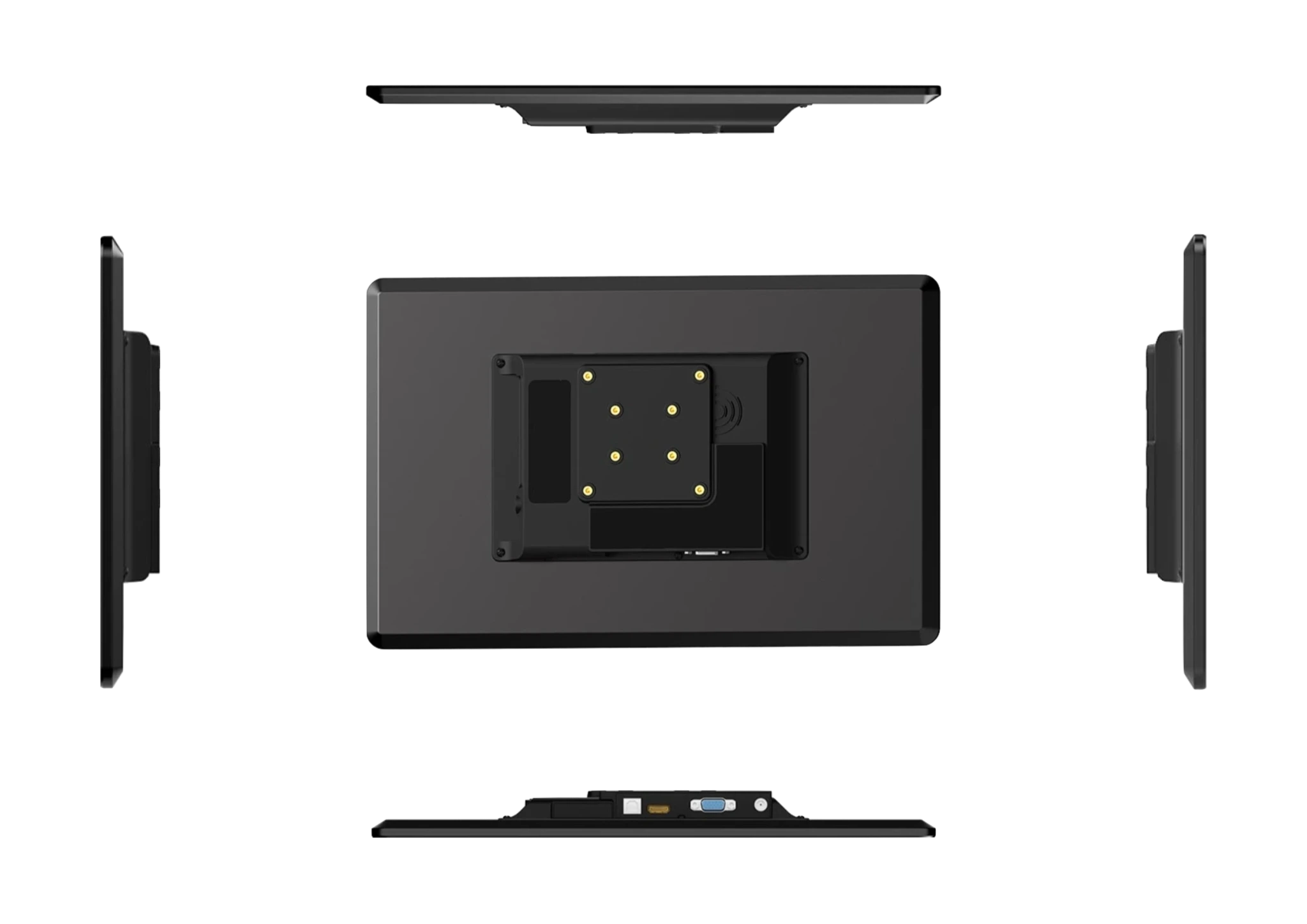

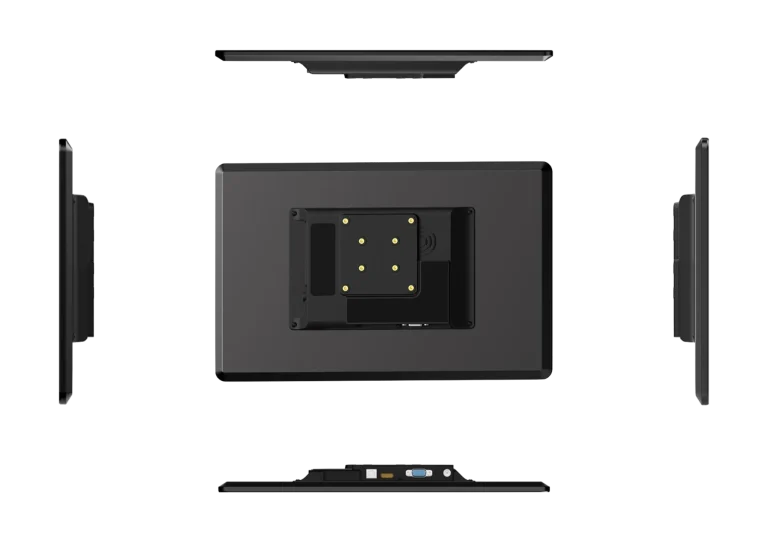

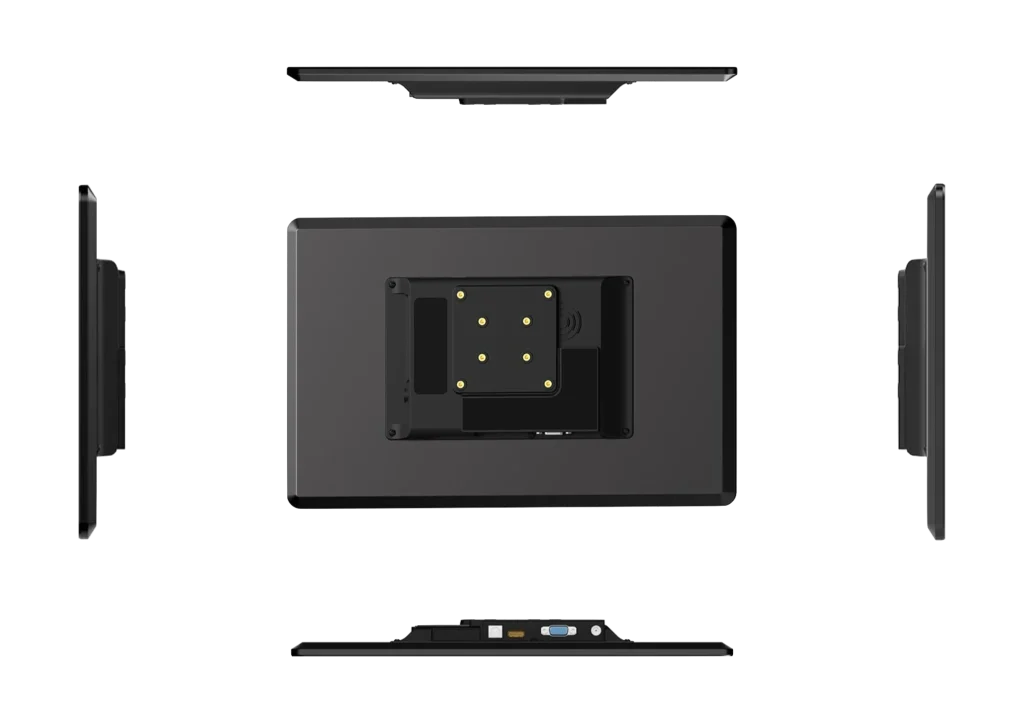

8 x Screws for VESA or RAM Mount
AC Adapter, 100~240V, 24W, 12V/2A, PSE/CCC/EU
Order Information
Part Number Description
D156NS001 15.6-inch, 1920 x 1280 Industrial Panel
PXDCAB002 2m HDMI Cable
PXDCAB010 3.5m HDMI Cable
PXDCAB003 2m USB Cable (Type-A to Type-B)
PXDCAB011 3.5m USB Cable (Type-A to Type-B)
XXDARM001 Desk Arm, Support VESA 75 x 75mm and RAM Mount
