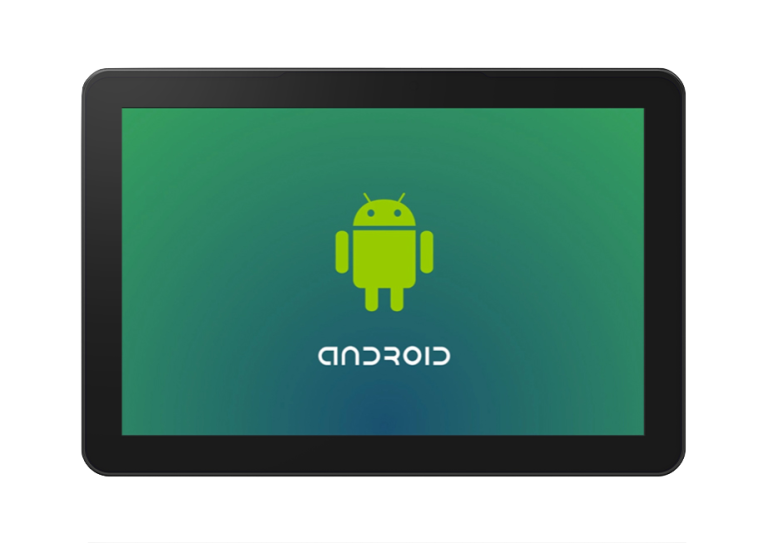

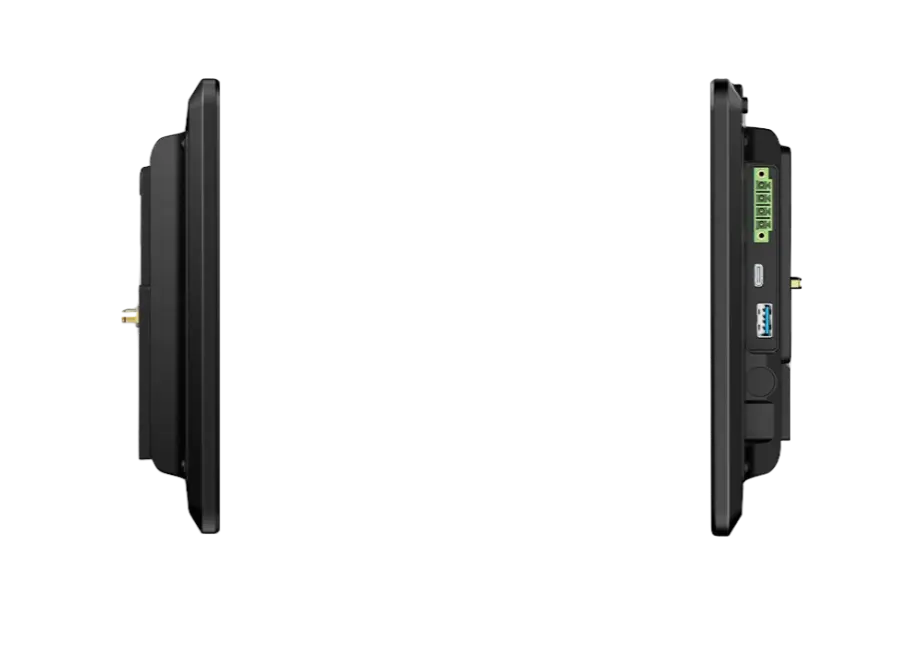

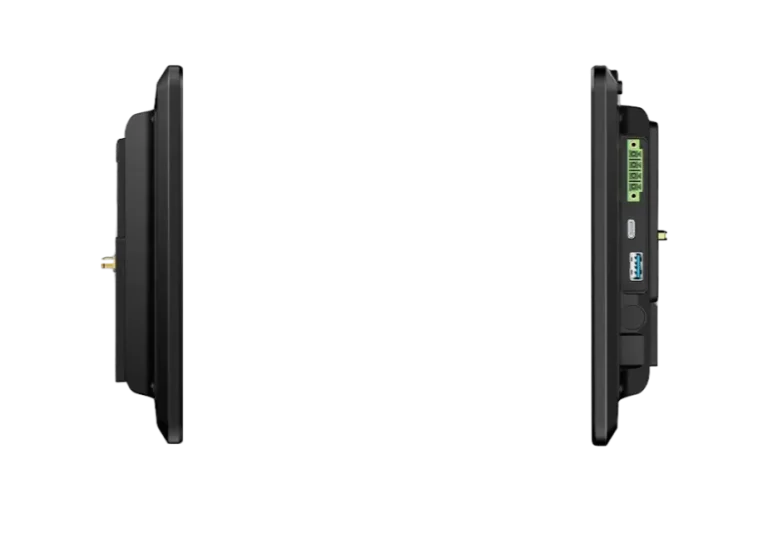

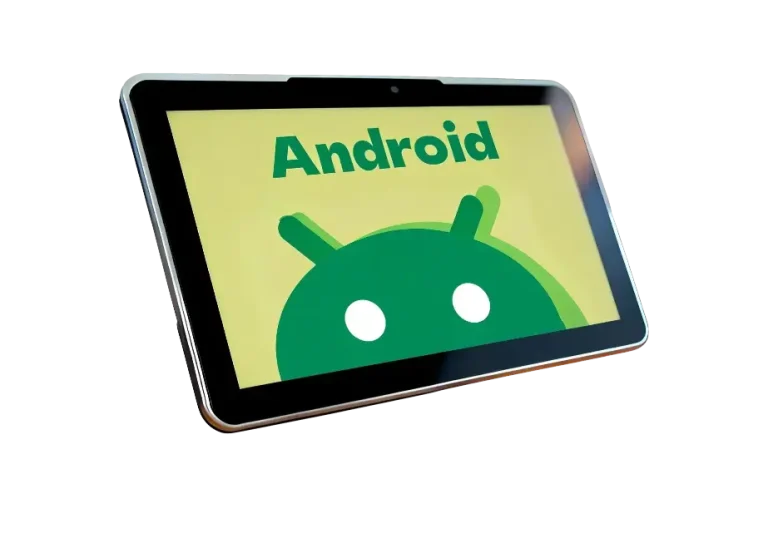

Transform your industrial operations with the Rugstorm D101A. This 10.1-inch panel PC, designed with a slim profile and adaptable mounting options, seamlessly integrates into any workspace. Featuring advanced touchscreen technology and optional 4G/5G/Wi-Fi, the D101A ensures a smooth and efficient user experience, empowering you to optimize your workflow.
The D101A delivers a comprehensive array of I/O ports (USB-C, USB-A 2.0 & 3.0, RS232/485, HDMI, RJ45) and seamless wireless integration via Wi-Fi, 5G, and 4G. Stay online, stay productive, seamlessly integrate into any setup and adapt to evolving connectivity needs.
The D101A delivers a truly responsive and modern user experience with its high-performance capacitive multi-touch screen. Featuring 5-point simultaneous touch recognition, it enables effortless navigation and intuitive gesture control, including swiping, zooming, and pinching, for streamlined operation.

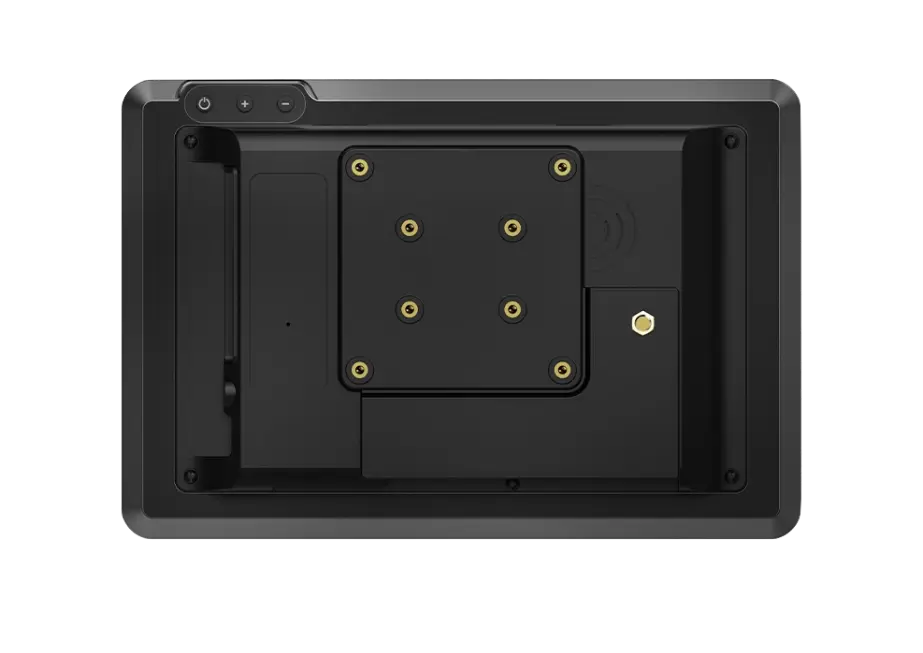

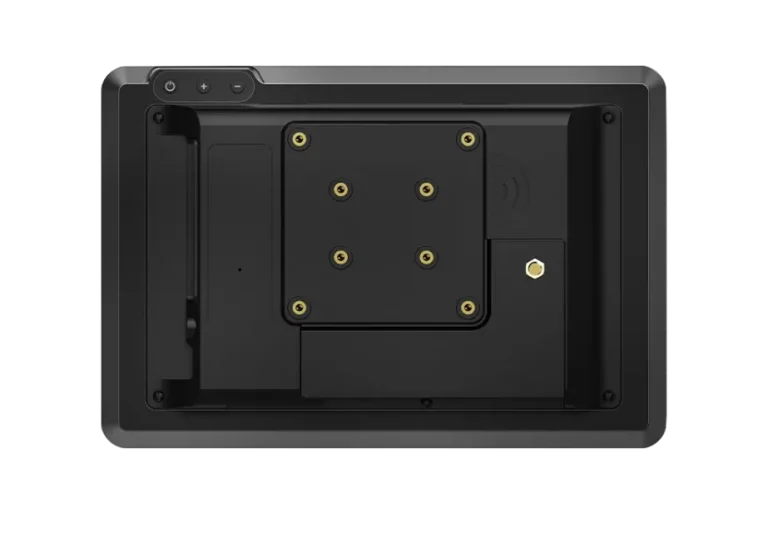

Simplify your installation process with the D101A's user-friendly design. The integrated desk arm revealing a 75mm VESA mount for effortless compatibility with universal wall brackets. Mount your device in either landscape or portrait mode, ensuring optimal viewing and functionality.
| Specifications – D101A | ||
| System | Operation System | Android™ 12 |
| Processor | RK3568, Quad-core | |
| Frequency | 2.0 GHz (Max) | |
| Memory | 4GB DDR4, 8GB (optional) | |
| Storage | 32GB, 64GB (optional) | |
| Wireless Connectivity | Wi-Fi (WLAN) | Wi-Fi 2.4GHz (Optional) |
| Cellular (WWAN) | 4G LTE CAT4 / 5G NR SA (Optional) | |
| Interface | Key | 1 x Power, 2 x Screen Brightness +/- |
| I/O Port (Top Side) | 1 x USB2.0 Type-C, 1 x USB2.0 Type-A, 1 x RS232/RS485 | |
| I/O Port (Bottom Side) | 1 x Φ5.5mm DC in, 1 x HDMI Type-A, 1 x USB 3.0 Type-A 1x USB 2.0 Type-A, 1 x RJ45 LAN, 1 x 3.5mm Audio output |
|
| Dimension & Weight | Dimensions | 252mm L x 170.6mm W x 31.5mm D |
| Net Weight | 0.88kg | |
| Gross Weight | 1.2kg | |
| Power | Input Voltage | 12V, 2A |
| Touch Screen | Size | 10.1-inch |
| Resolution | 1280 x 800 | |
| Viewing Angle | 89°, vertical/horizontal | |
| Active Area | 217.98mm x 136.6mm | |
| Brightness | 300 nits | |
| Display Color | 16.7M | |
| Contrast Ratio | 1000:1 | |
| Touchscreen Type | 5 point capacitive touch | |
| Environment | Operating Temperature | -10℃~55℃ |
| Storage Temperature | -20℃~60℃ | |
| Operating Humidity | 0%~95% (Non Condensing) | |

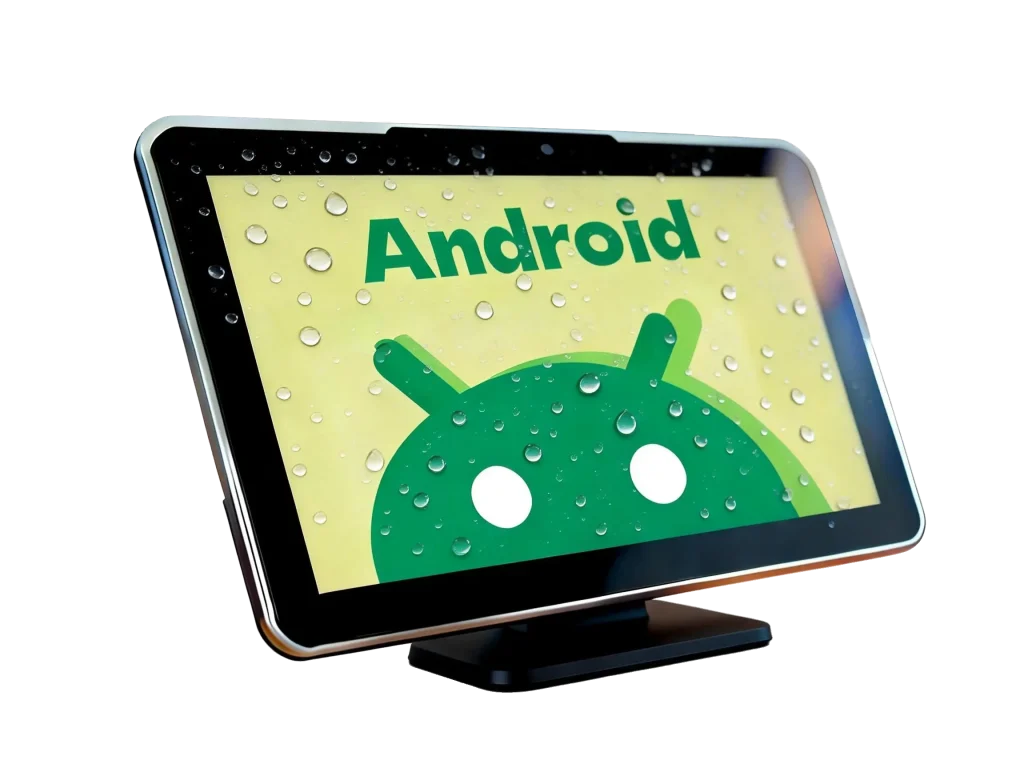

| Front Panel Protection | IP54 | |
| Compliance | Certification | CE / VCCI / JATE / CCC |
| Order Information | ||
| Part Number | Description | |
| D101AS001 | 10.1-inch Panel PC, Android™ 12 | |
| D156AS001 | 15.6-inch Panel PC, Android™ 12 | |
| PXDCAB001 | AC Adapter, 100~240V, 24W, 12V/2A, PSE/CCC | |
| PXDCAB009 | AC Adapter, 100~240V, 24W, 12V/2A, CE | |
| XXDARM001 | Desk Arm, Support VESA 75 x 75mm and RAM Mount | |
| PXDCAB007 | 2m HDMI Cable | |
| PXDCAB002 | 3.5m HDMI Cable | |
| FXDMOD001 | 4G WANN Module, Mini PCIe | |
