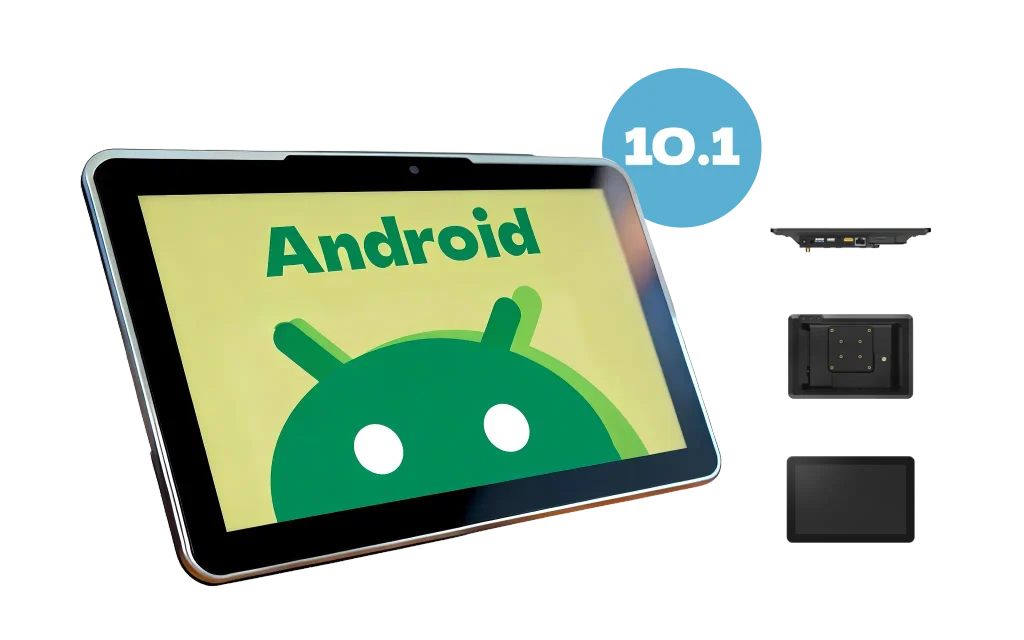

Unleash the power of seamless connectivity and unparalleled versatility with the D101A. This industrial panel PC featuring a slim design, offers high-speed 4G/5G/Wi-Fi, ensuring constant connection in any environment. The Rugstorm Industrial Panel PC adapts effortlessly to any support, making it the ideal solution for demanding industrial applications.
D101A
The Rugstorm Industrial Panel PC delivers a comprehensive array of I/O ports (USB-C, USB-A 2.0 & 3.0, RS232/485, HDMI, RJ45) and seamless wireless integration via Wi-Fi, 5G, and 4G. Stay online, stay productive, seamlessly integrate into any setup and adapt to evolving connectivity needs.
The Rugstorm Industrial Panel PC delivers a truly responsive and modern user experience with its high-performance capacitive multi-touch screen. Featuring 5-point simultaneous touch recognition, it enables effortless navigation and intuitive gesture control, including swiping, zooming, and pinching, for streamlined operation.

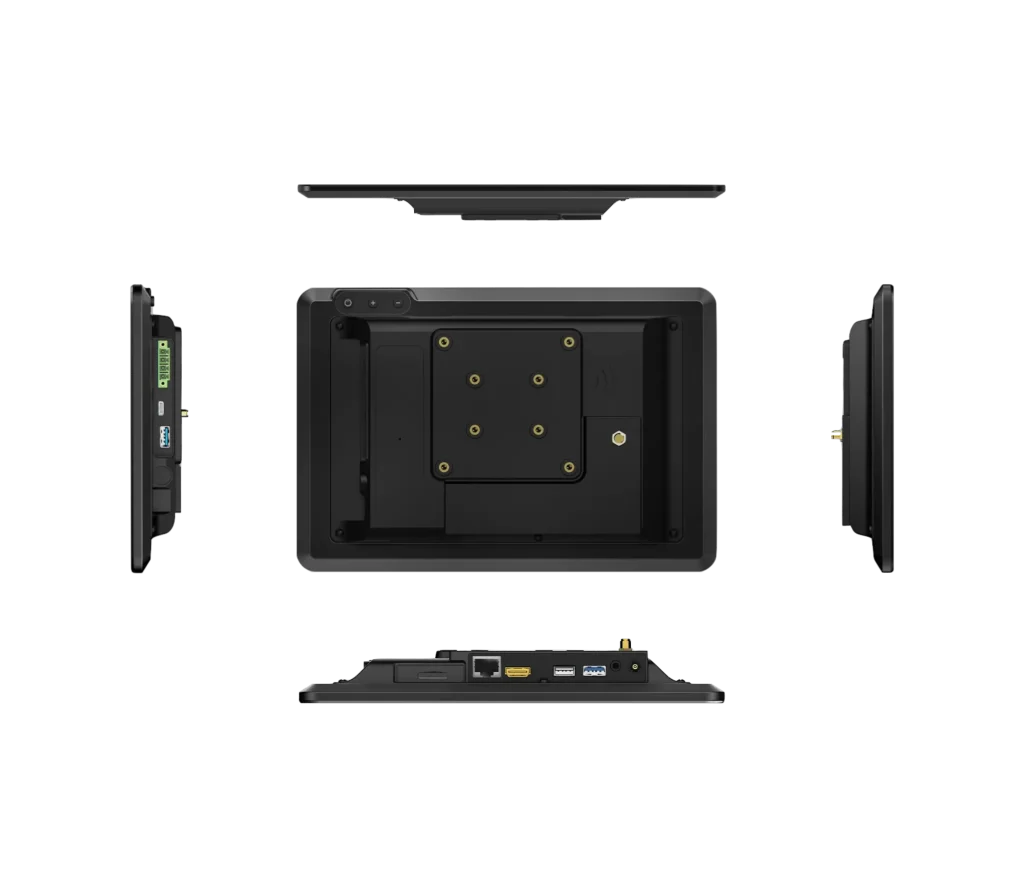

Simplify your installation process with the Rugstorm Industrial Panel PC's user-friendly design. The integrated desk arm revealing a 75mm VESA mount for effortless compatibility with universal wall brackets. Mount your device in either landscape or portrait mode, ensuring optimal viewing and functionality.
| Model｜型番 | D101A | D156A | D215A |
| OS Support｜サポートOS | Android 12 | Android 12 | Android 12 |
| CPU | RK3568, quad-core | RK3568, quad-core | RK3568, quad-core |
| Frequency｜周波数 | 2.0 GHz (Max) | 2.0 GHz (Max) | 2.0 GHz (Max) |
| Memory｜メモリ | 4GB LPDDR4, 8GB (optional) | 4GB LPDDR4, 8GB (optional) | 4GB LPDDR4, 8GB (optional) |
| Storage｜ストレージ | 32GB, 64GB (optional) | 32GB, 64GB (optional) | 32GB, 64GB (optional) |
| Network (LAN) | 1 x RJ45(1000M) , 1 x Wi-Fi 2.4GHz | 1 x RJ45(1000M) , 1 x Wi-Fi 2.4GHz | 1 x RJ45(1000M) , 1 x Wi-Fi 2.4GHz |
| Network (WAN) | 4G: LTE CAT4 or 5G: NR SA (optional) | 4G: LTE CAT4 or 5G: NR SA (optional) | 4G: LTE CAT4 or 5G: NR SA (optional) |
| Button｜ボタン | 1 x Power Key, 2 x Brightness control | 1 x Power Key, 2 x Brightness control | 1 x Power Key, 2 x Brightness control |

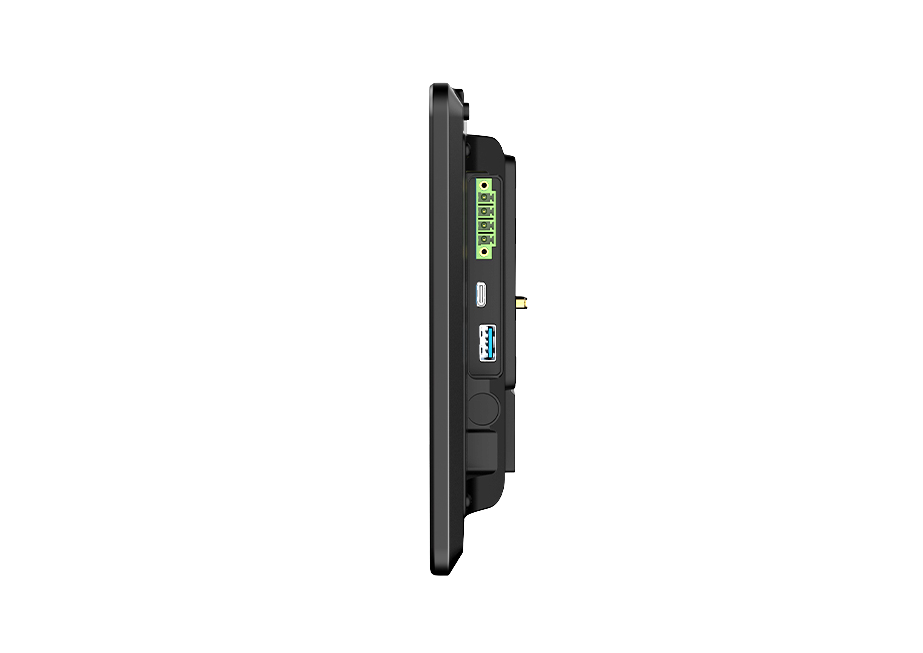

| Port (Side) | 1 x USB2.0 Type-C, 1 x USB2.0 Type-A, 1 x RS232/RS485 | 1 x USB2.0 Type-C, 1 x USB2.0 Type-A, 1 x RS232/RS485 | 1 x USB2.0 Type-C, 1 x USB2.0 Type-A, 1 x RS232/RS485 |

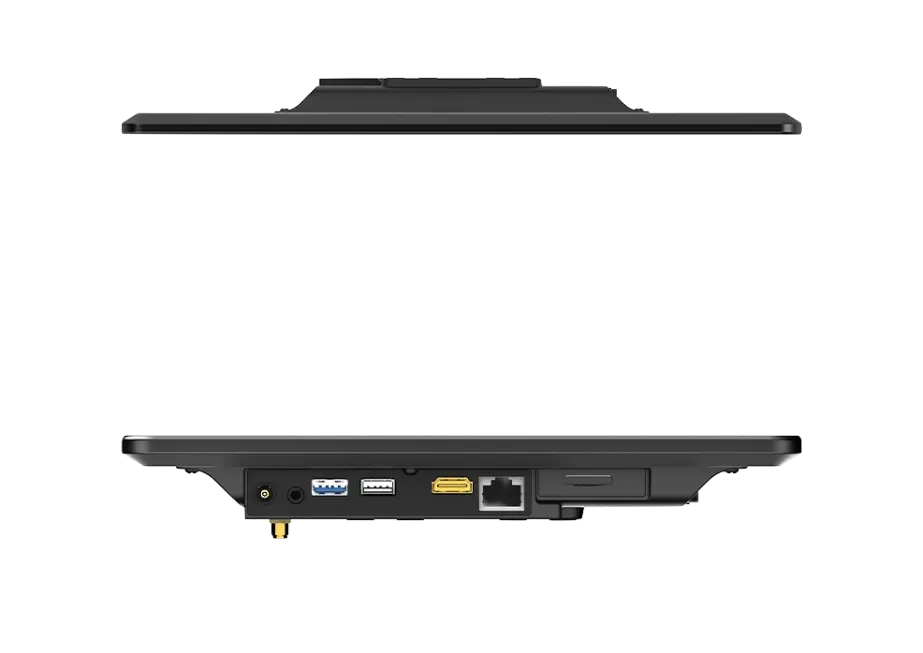

| Port (Bottom Side) | 1 x Φ5.5mm DC_IN, 1 x HDMI Type-A, 1 x USB3.0 Type-A | 1 x Φ5.5mm DC_IN, 1 x HDMI Type-A, 1 x USB3.0 Type-A | 1 x Φ5.5mm DC_IN, 1 x HDMI Type-A, 1 x USB3.0 Type-A |
| 1 x USB2.0 Type-A, 1 x RJ45 LAN, 1 x 3.5mm Audio output | 1 x USB2.0 Type-A, 1 x RJ45 LAN, 1 x 3.5mm Audio output | 1 x USB2.0 Type-A, 1 x RJ45 LAN, 1 x 3.5mm Audio output | |
| Dimensions｜外形寸法 | 252 x 171 x 31.5mm | 384 x 244 x 32.5mm | 532 x 325 x 39mm |
| Net Weight｜純量 | 0.88KG | 1.66KG | 5KG |
| Gross Weight｜総重量 | 1.2KG | 2.1KG | 6KG |
| Input Voltage｜入力電圧 | 12V | 12V | 12V |
| Size｜サイズ | 10.1 inch | 15.6 inch | 21.5 inch |
| Resolution｜解像度 | 1280 x 800 | 1920 x 1080 | 1920 x 1080 |
| Viewing Angle｜視角 | 170° | 170° | 170° |
| Active Area｜アクティブエリア | 217.98 x 136.6mm | 344.16 x 193.59mm | 476.64 x 268.11mm |
| Brightness(Type)｜輝度 | 350 nits | 300 nits | 300 nits |
| Display Color｜色深度 | 16.7M | 16.7M | 16.7M |
| Contrast Ratio｜コントラスト比 | 1000:01:00 | 1200:01:00 | 1500:01:00 |
| Response Time｜応答速度 | 30ms(Typ) | 30ms(Typ) | 30ms(Typ) |
| Backlight Life(hours)｜バックライトの寿命 | 20,000hrs(Min) | 20,000hrs(Min) | 20,000hrs(Min) |
| Touchscreen Type｜タッチスクリーン | 5 point capacitive touch | 5 point capacitive touch | 5 point capacitive touch |
| Surface Hardness｜表面硬度 | 6H | 6H | 6H |
| Operating Temperature｜使用周囲温度 | -10℃~55℃ | -10℃~55℃ | -10℃~55℃ |
| Storage Temperature｜保存周囲温度 | -20℃ ~60℃ | -20℃ ~60℃ | -20℃ ~60℃ |
| Operating Humidity｜湿度 | 0%~95% (Non Condensing) | 0%~95% (Non Condensing) | 0%~95% (Non Condensing) |
| Front Panel Protection｜フロントパネル保護 | IP54, IP65(optional) | IP54, IP65(optional) | IP54, IP65(optional) |
| Certification｜認証規格 | CCC / CE / VCCI / JATE / PSE(Adapter) | CCC / CE / VCCI / JATE / PSE(Adapter) | CCC / CE / VCCI / JATE / PSE(Adapter) |
